Fixed Stand-off (11.6mm Spacer) (Tapered-Face) (HSS-Mount)

Offers consistent distance between glass and mounting surface!

Fixed Stand-off (11.6mm Spacer) (Tapered-Face) (HSS-Mount)

The stand-off that started it all!
The ST504 was our original stand-off, created to offer just a minimum of space between face glass and mounting surface (11.6mm or ½” to be exact).

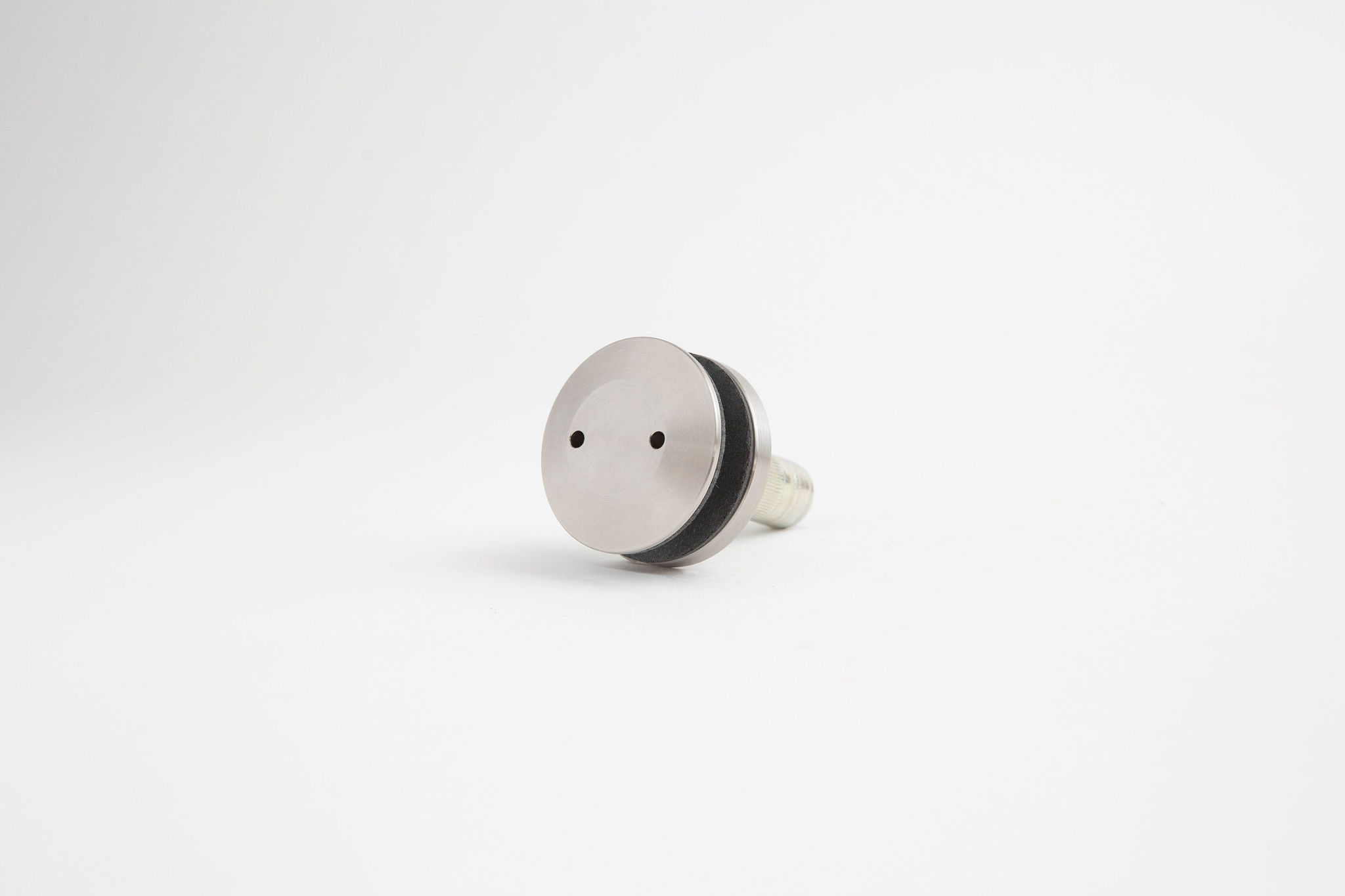

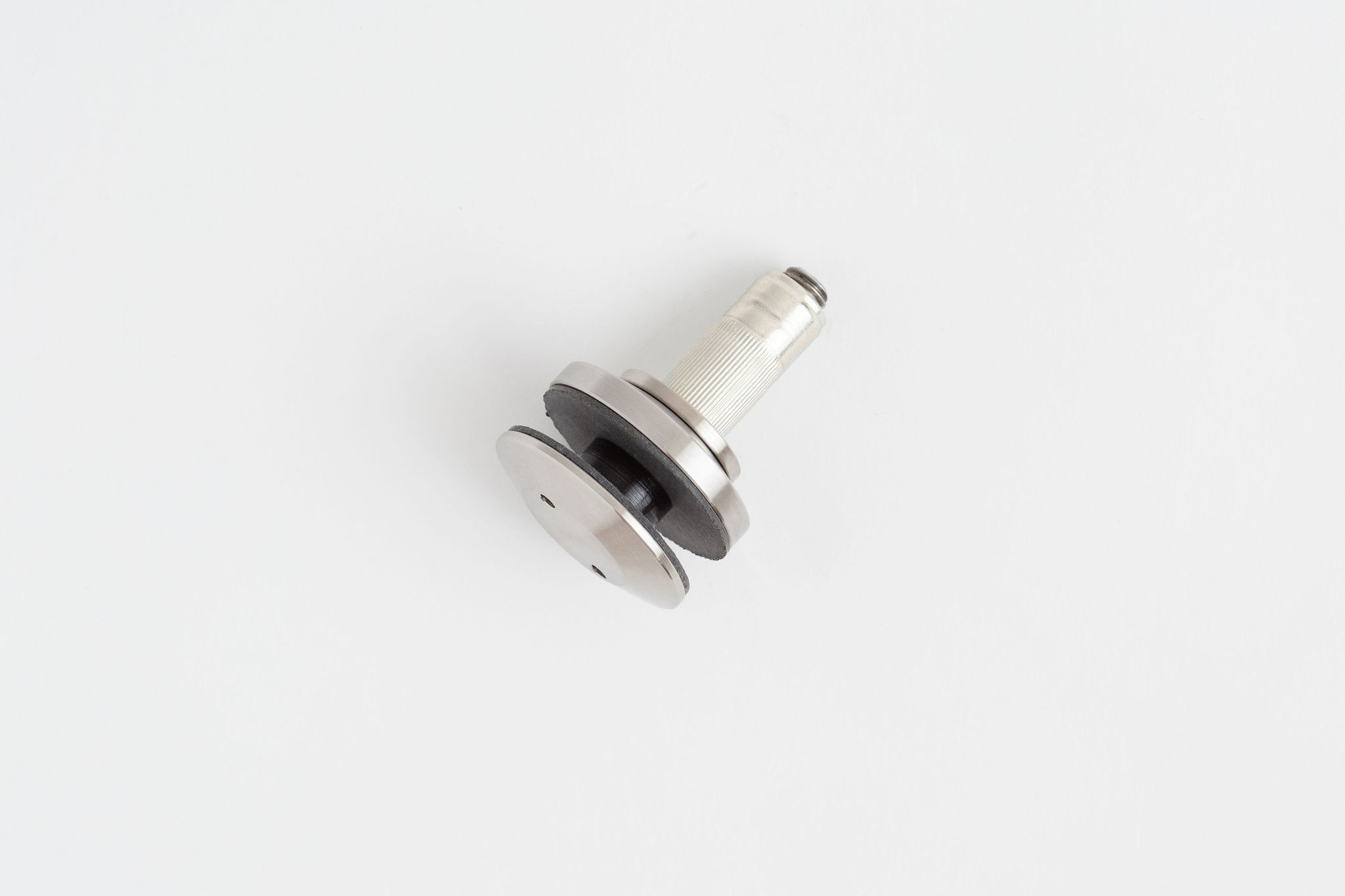

This stand-off has a tapered outer face and mounts to thin-walled HSS via supplied Stella nutsert.

You’ll be steered to select this stand-off over our other ST503 (adjustable stand-off on this site) for any one of the following reasons:

• you’re looking to match an existing non-adjustable stand-off
• you’ve got a tighter budget for parts and you’re sure that your mounting surface is even – you don’t need the adjustability features of our ST503
• you have complete access for installation – this product doesn’t offer a front-mounting option
• you have a space constraint between underside of glass to the mounting surface – this product offers the closer connection of all our stand-offs with just of 12.5mm [1/2”] between glass and mounting surface

When you order from Stella – you get the complete assembly.

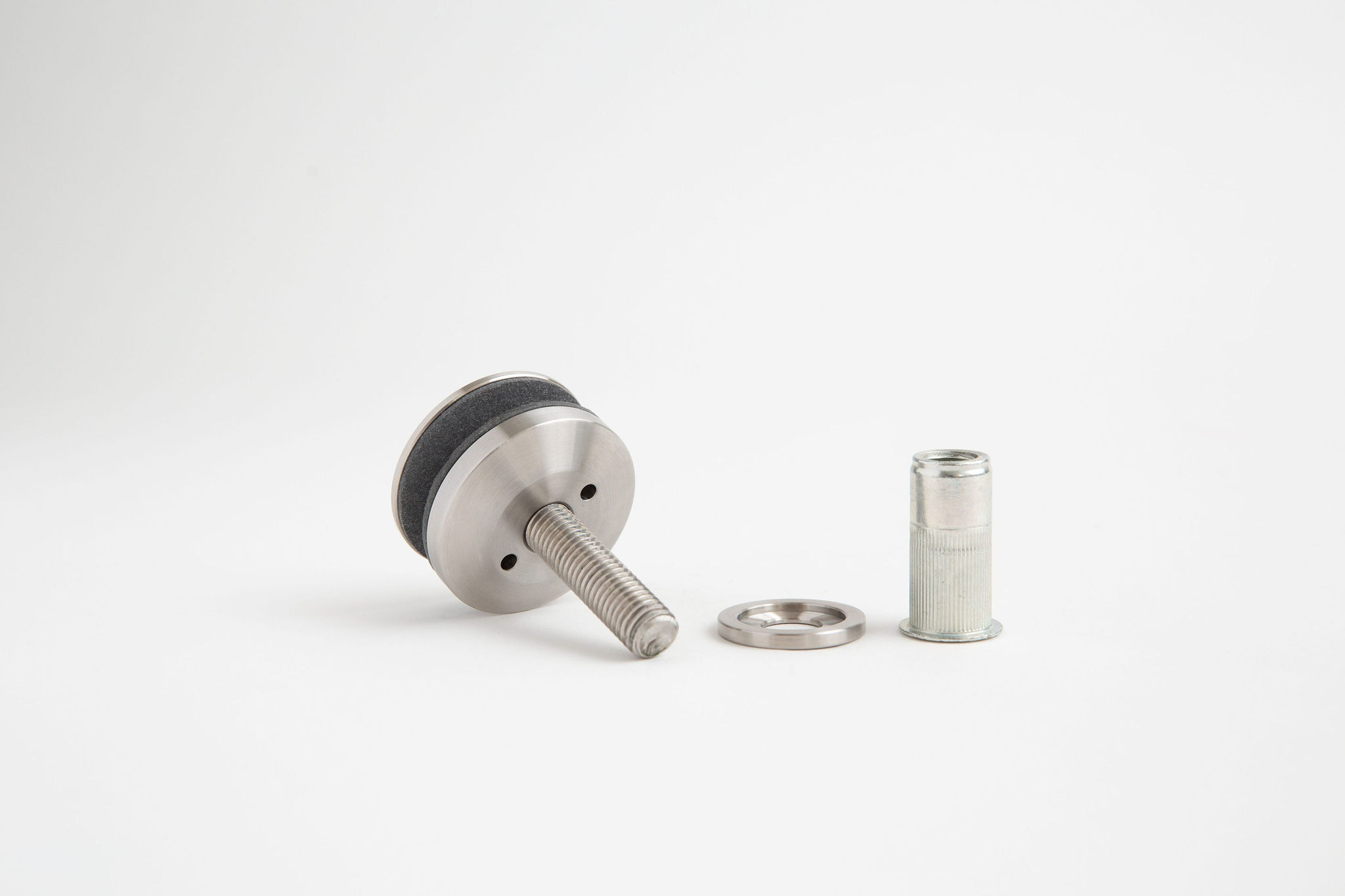

This stand-off is supplied with all the components you need to install – fibre gaskets, ferrule bushing and your chosen attachment to affix this stand-off to your mounting surface.
Note that we can modify this product for your application if you want – offering you choices for gaskets, stand-off lengths, and mounting hardware…custom is part of our name!

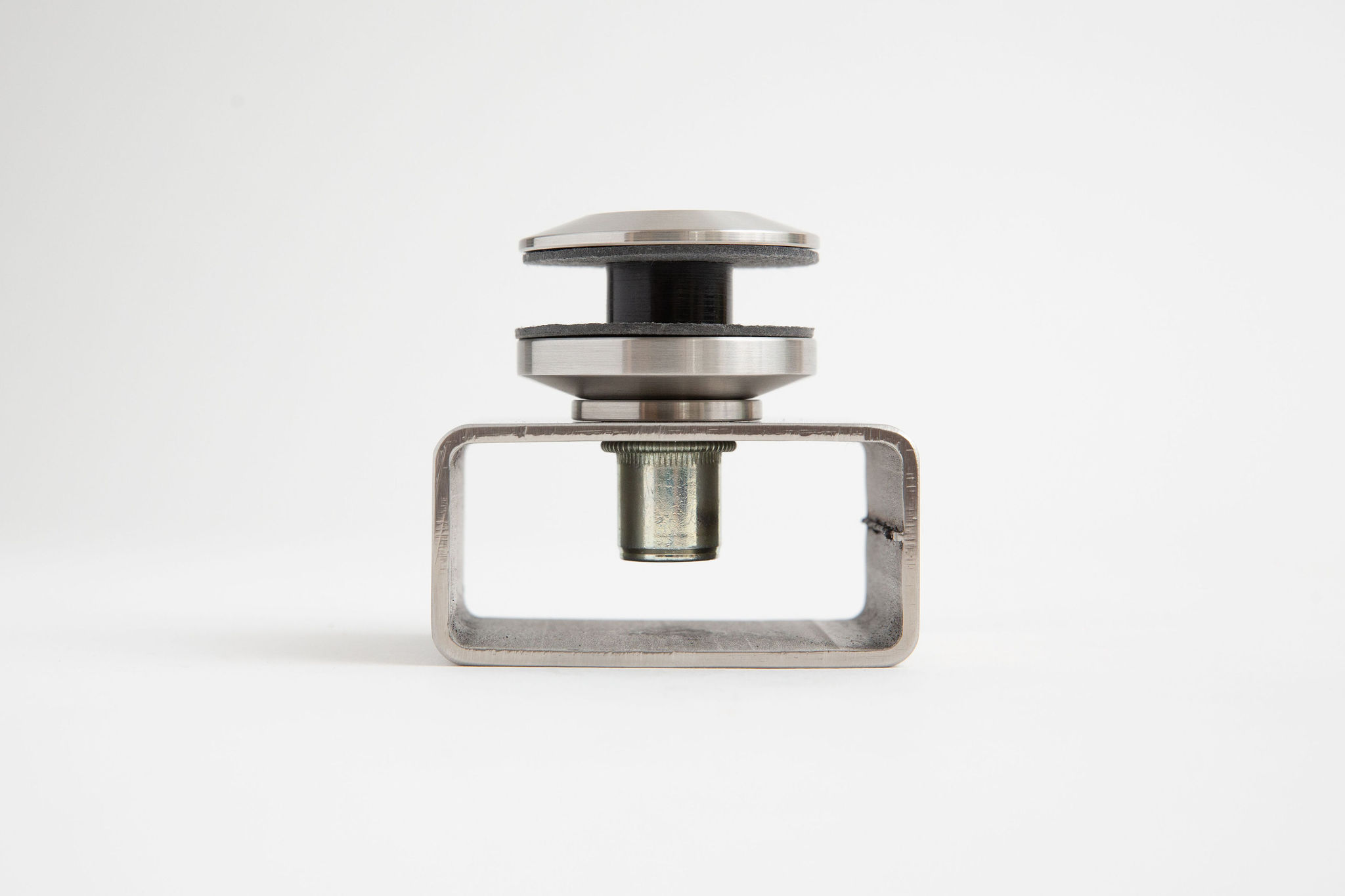

Complete with Stella Nutsert to allow easy install onto HSS profiles
“Nutsert” is a Stella Innovation – a labour/cost-saving alternative to drilling and tapping and works well for thin-walled HSS (1/4” to ½” thick).
It functions like a rivet nut and forms a collar on the inside of the HSS.

Looking for something different than our standard brushed finish?
We can do that! Just ask!
Change the colour with Stella Spectrum – a HCC (hard ceramic coating) finish.
Gold and matte black are common requests.
We love our Spectrum finish as it’s a harder finish that better adheres to stainless steel, offers additional corrosion resistancy, and key to you – is budget and lead-time friendly.

Looking for a standard size?
Shop Stella Online for faster delivery of our standard sizes.
