Light-Duty Doc & Pin (Tapered-Face) (Single Connection)

Stella's hardware solution for light walls and infill panels!

Light-Duty Doc & Pin (Tapered-Face) (Single Connection)

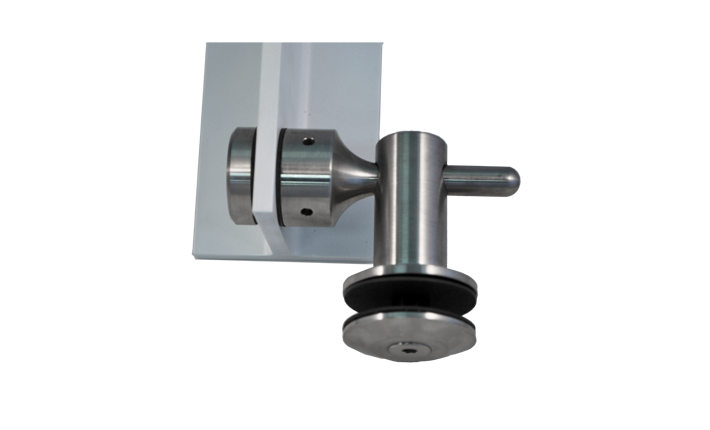

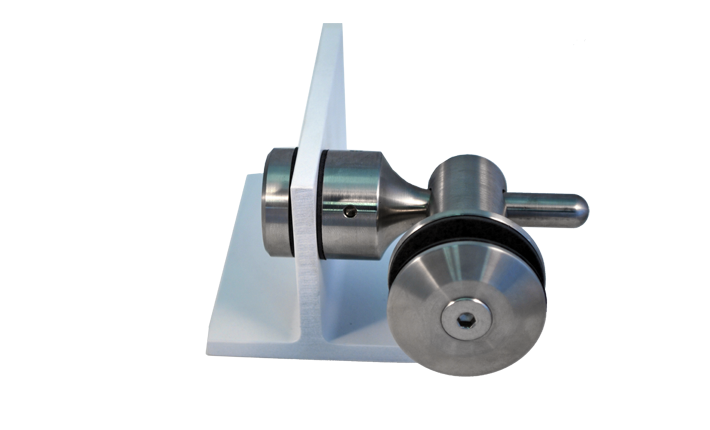

Stella’s light-duty, single connection Doc & Pin is an effective and easy solution for connecting glass to the support structure at the end or corner of an application.

The tapered-face bolt is ideal for showcasing the hardware, once it’s mounted on the outside of the glass.

*One 12mm diameter Pin with one 50mm diameter Doc.

*This product is suppose to be used for infill panels. It’s not suitable for guardloads, for guardloads, use our Doc & Pin Heavy-Duty line.

Useful for situation where access from the back is not possible, the 5-steps install process of a front-mounted bolt saves you time and money!

1. Step One – Fix the Stella glass bolt to mounting structure.
2. Step Two – Remove the front cap of Stella glass bolt.
3. Step Three – Place the glass on Stella glass bolt.
4. Step Three – Secure the front cap of Stella glass bolt.
5. That’s it! You’re done!

Spectrum Series Finishes!

Stella is always looking for new an innovative ways to ensure that you have options for your projects. The Spectrum Series is a Hard Ceramic Coating that allows stainless steel hardware to be colour coated without the fear of chipping that alternative colour options usually have.

Stainless Steel coatings such as powder coating or paint are prone to chipping. This coating is much harder and has much better adhesion to stainless steel. This coating is also much thinner (0.75 umm – 1.0 umm thickness) which means threads stay operable even when coated.

Colours Options: Black, Gold, Silver/Grey, Rose Gold & Purple.

Available Textures: Matte, Brushed, Polished/Mirror.

Specialty Patterns: Designer or specialty patterns (camouflage for example) are available upon request. These options do cost more but may be able to achieve specialty patterns that are otherwise unavailable on Stainless Steel.
